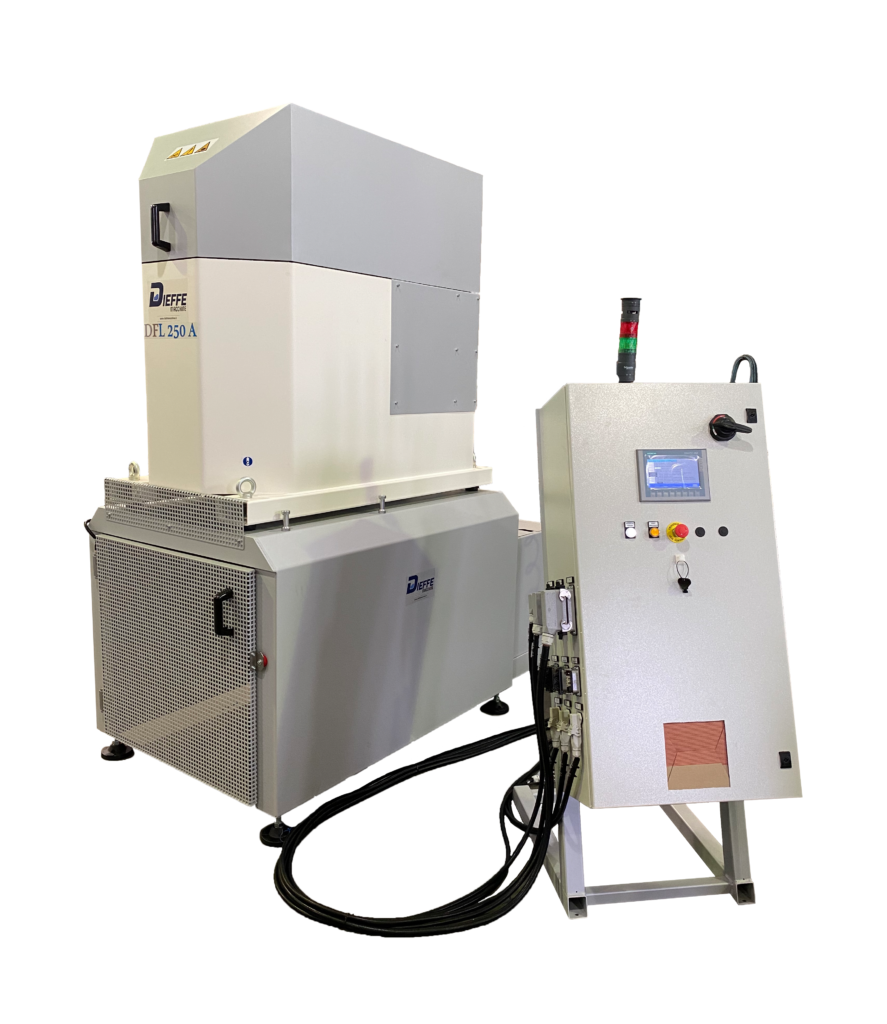

DFL 250 A

Centrifuges with independent fully automatic solid discharge.

This mechanical centrifuge treatment system is for the removal of solids from water used in processing glass, stone and ceramic materials. Waste and solids which are suspended in the water, are separated out by a centrifugal action, with the clean water suitable to be recycled and reused for the same process. Clarification takes place by pumping the dirty water to the removable centrifuge drum at a controlled flow rate, directing it strategically into a specially shaped and purposely designed rotating drum cylinder. The unique design of the drum makes the water flow and rotate, and naturally rise. Two actions happen during this process: solids are forced to the outside because of their weight compared with water (g-force), and clean water is channelled to the top and centre for recycling. Water is clarified to 5μm (5 microns). This means that production waste ground materials: silica, diamond and polishing compounds glass, greater than 5μm, will be separated out. The clarified water is sent back to the machine for re-use. The removal of sludge collected by the centrifuge is done automatically.

At scheduled times, which is programmed by using a keypad on the PLC, the centrifuge will stop to get rid of the sludge. At the end of this auto-cleaning phase, the centrifuge will restart a new work cycle. The centrifuge can also be equipped with a remote start and stop function.

The centrifuges with fully automatic solid discharge can be combined with a hydro cyclone.
Integrating a hydro cyclone means it is possible to treat 100% of the waste water, by separating and discharging the dehydrated solids from the centrifuge.

Operation:
From a pit, the waste water is pumped to the hydro cyclone. The feed flow of the dirty water and the geometry of the hydro cyclone are specially designed to cause a spiral movement, firstly along the sides of the container, then to the bottom of the cone. This vortex causes the solids to collect in the bottom which can then be sent to the centrifuge for removal. The cleaned water then filters back the inner cylinder of the cyclone, where it can be recycled and sent to the processing equipment for re-use.

Technical features

Flow
Quality
Dimensions
Weight
Area
Voltage
Power
250 l/min
5 μm
110x2200x2550
1150 Kg
2,5 m2
400 V / 50 Hz
9,5 Kw
